| Specification | |
| Model | TS-PEC-002 |
| Electrical Properties | |
| Voltage | 230V AC±10%/380V AC±10% |
| Max Output Current | 16A / 32A (6 / 8 / 10 / 13 / 16 / 20 / 32A adjust) |
| Max Out Power | 3.5KW / 7KW / 11KW / 22KW |
| Frequency | 50/60Hz |
| Residual current protection | 30mA as defa니t 6mA is optional |
| Structure Design | |
| Display | 1.8″ LCD |
| LED Indicator | LED Light bar |
| Front Panel | PMMA |
| Installation Method | Wall-mount/carry-on Optional |
| Charging Outlet | Type1/2 + 4.5M charging cable |
| Power incoming line | 0.7M |
| Total cable length | >5M |
| Housing Material | PC+GF 10% |
| Security Protection | |
| Safety Standard | IEC/EN 61000-6-1:2019； EN 61000-6-3：2007+A1； IEC 61000-6-1:2016； IEC 61000-6-3：2006+A1； CISPR 14-1:2016； IEC/EN 62752：2016+A1 |
| Multiple Protection | Over/Under voltage protection, Surge protection, Over temperature protection,Over current protection, Leakage Protection,Short circuit protection,EFT Protection |
| Warranty | 1 year |
| Environmental Performance | |
| Working temperature | -30C~+50C |
| Working humidity | 5%~95%, No condensation |
| Protection Level (control box) | IP65 |
| Altitude | <2000m |
| Application Site | Indoor/Outdoor |
| Co이ing Method | Natural cooling |
| Extra Function | |
| Temperature detection function | Yes (check the temp.of PCB and show it on the screen ) |
| Schedule charging | Yes (1-8hours ) |
| Packing Details | |
| Product Size | 255*109*55mm |

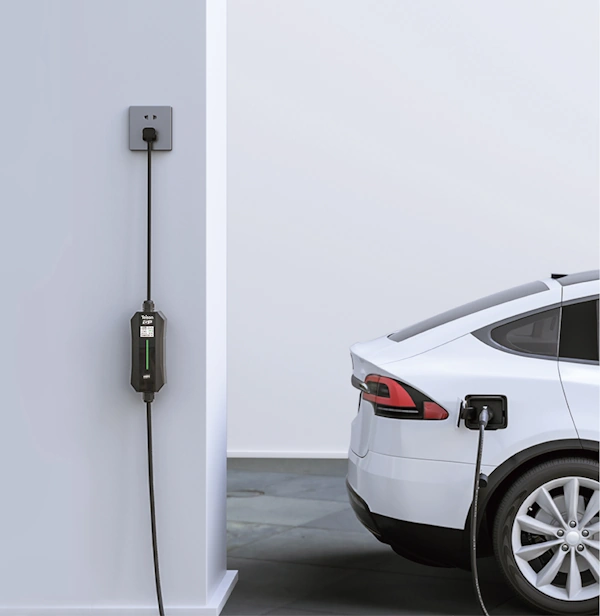

Portable EV Charger Pro
Easy use – Plug & play, easy operation Current adjust by simple press on button
High efficiency – Max 22kw charging power
Portable and convenient – Charge your EV whenever and wherever
Reliable & safe – TUV & CE approved top quality
IP65 – TUV approved protection level for safety charging in extreme environment
Current adjustable – Max 7 levels charging current selection
Colour screen – Show real-time charging status
Solid design – Strong cable retention, Drop & Crush resistance, Enclosure strong enough to withstand the weight of a MPV
Safety – Aviation connectors for wide range use, Automatically identify and adjust the current, Adapt to different voltages in various conditions, Maximum current 60A; Superior than common 32A-40A products in the market, Safety insurance
Appointment – Max 8 hours scheduled delay start on charging time
