| Specification | ||
| Model | TS-EVC11-002C-002 TS-EVC1 1-002C-002(S) | TS-EVC22-002C-002 TS-EVC22-002C-002(S) |
| Electrical Properties | ||
| Voltage | 380V AC ±10% | |
| Max 〇니tput Current | 2*16A | 2*32A |
| Frequency | 50/60HZ | |
| Max 〇니tput Power | 2*11kW | 2*22kW |
| Residual current protection | 30mA AC+ DC 6mA | |
| Design | ||
| Emergency Stop Button | Yes | |
| Display | 5″ LCD to니ch screen | |
| RFID Function | Yes | |
| Charging Outlet | Two charging socket (Type 2) /4.5M charging cable | |
| Energy Meter | On board power meter | |
| Ho니sing Material | SPCC carbon steel | |
| Front Panel | PC | |
| Installation Method | Floor mounted | |
| Network Gateway | LAN | |
| Communication Protocol | OCPP1.6(J-SON) | |
| Safety Standard | EN IEC 61851-1:2019； IEC 61851-1:2017； EN IEC 61851-21-2:2021； EN IEC 61000-6-1:2019； EN IEC 61000-6-2:2019； EN IEC 61000-6-3:2021； EN IEC 61000-6-4:2019； ETSI EN 300 328 V2.2.2:2019； ETSI EN 300 330 V2.1.1:2017； ETSI EN 301 489-1 V2.2.3:2019； ETSI EN 301 489-3 V2.1.1:2019； ETSI EN 301 489-17 V3.2.4:2020； EN IEC 62311:2020 | |
| Warranty | 2 years | |
| Environmental Performance | ||
| Protection Level | IP55 | |
| Working altitude | V2000M | |
| Application site | Indoor/〇니tdoor | |
| Working temperature | -30°C~+50°C | |
| Working humidity | 5%~95%, No condensation | |
| Atmospheric press니re | 80kPa~101kPa | |
| Packing Details | ||
| Product size | 360*200*1510mm | |
| Base size | 460*300mm | |
| Optional Config | ||
| Energy meter | MID Power meter | |
| Network gateway | WIFI/4G | |

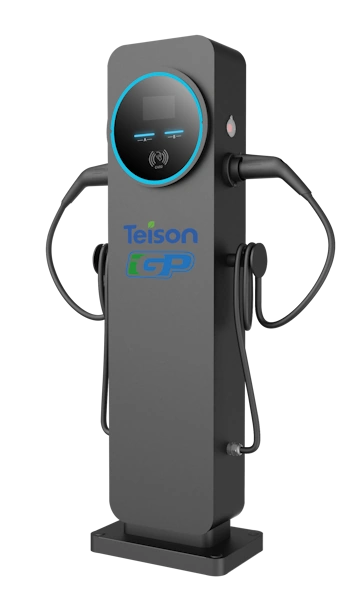

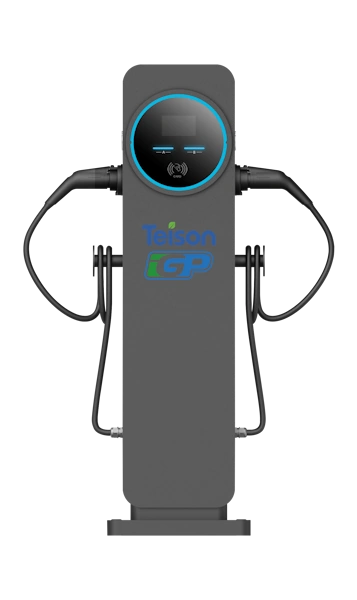

Smart OCPP Twins
Efficient Charging – Our charger is designed to charge two vehicles simultaneously with a high-power output of 22KW, making charging faster and more efficient.
Accurate Electrometer – Our charger comes with a built-in MID-certified meter to ensure accurate measurement of energy consumption.
OCPP Support – Our charger supports OCPP 1 .6J, which enables flexible options for third-party operators and ensures compatibility with different charging networks.
Convenient Payment – We offer mu lti ple payment options, including credit card, PayPal, and Stri pe, making it easy for users to pay for their charging sessions.
Robust Housing – Our charger is constructed with high-strength SPCC carbon steel, making it durable and resistant to damage, ensuring safe and reliable charging for years to come.
