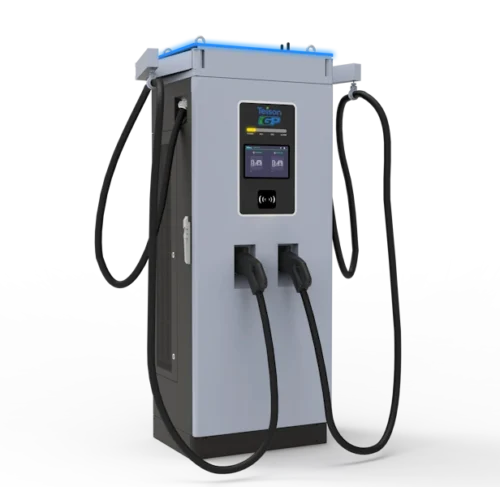

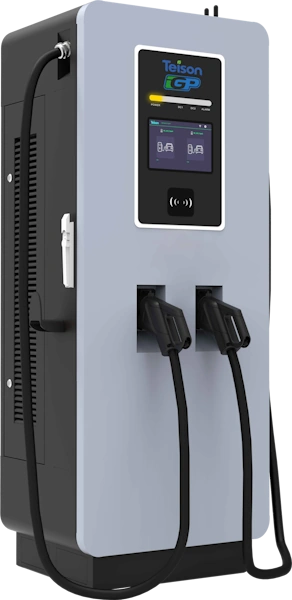

Standing DC Charging Station

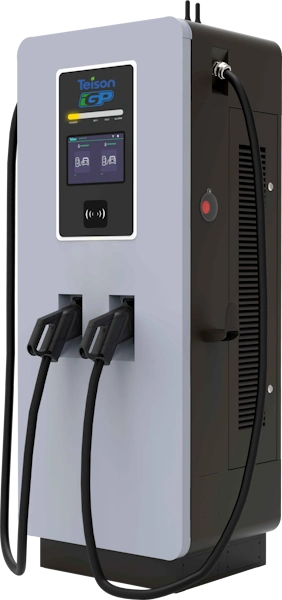

Standing DC Charging Station

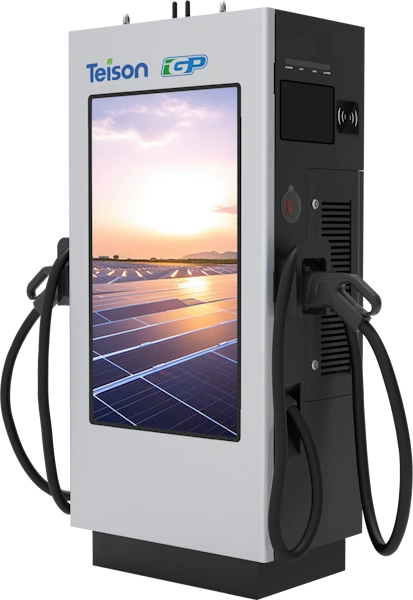

Standing DC Charging Station

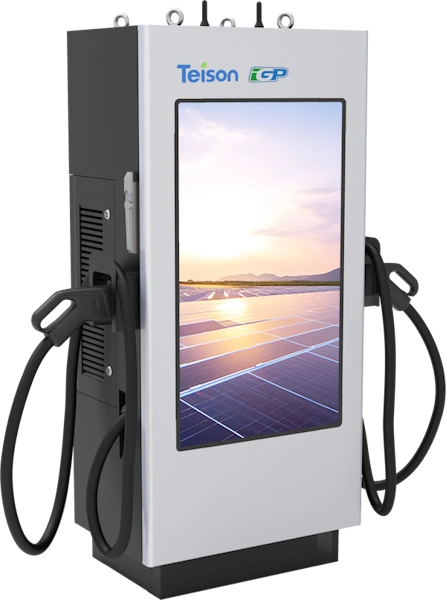

Standing DC Charging Station

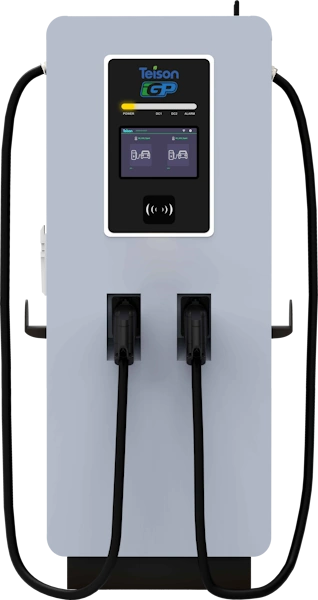

Standing DC Charging Station

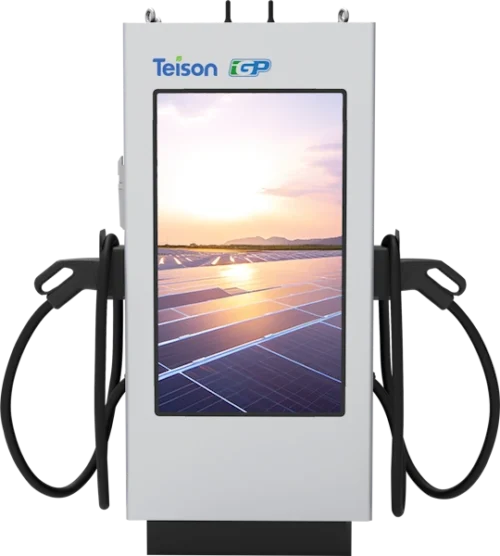

Standing DC Charging Station
Standing DC Charging Station
Standing DC Charging Station
Standing DC Charging Station
Standing DC Charging Station
  1. Standing DC Charging Station
  2. Standing DC Charging Station
  3. Standing DC Charging Station
  4. Standing DC Charging Station
  5. Standing DC Charging Station
  6. Standing DC Charging Station
  7. Standing DC Charging Station
  8. Standing DC Charging Station
  9. Standing DC Charging Station

High voltage output – The maximum output voltage up to 1 000V, satisfy requirements of various types vehicles cover small car, medium and large bus
High power output – Fast charging with high power output, suitable for large parking lots, residential areas, shopping malls
Intelligent power distribution – Multiple connectors charging simultaneously, allocate as needed, every power module works on its own, maximizing the module utilization

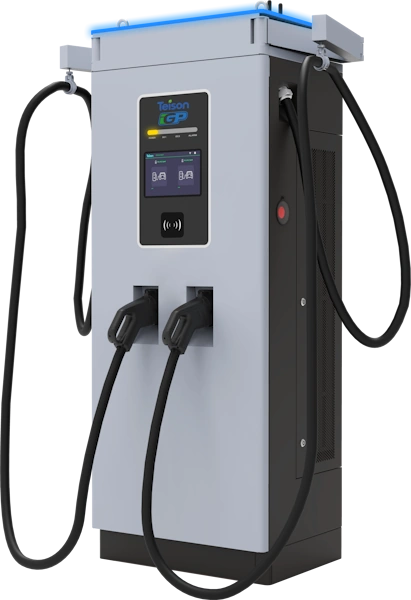

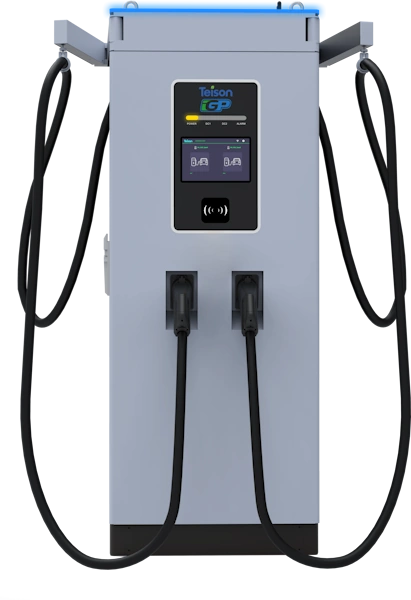

Flexible features – Integrated POS Terminal and cable suspension structure as optionals
Intelligent heat dissipation design – Modular heat dissipation design, independent working, the fan works based on station’s working condition, low noise pollution
Multi standard charging port combination – CCS2, CHAdeMO, GB/T,CCS1 can be combined and customized
Compact and modular design – 60kw up to 360kw, customization available
High voltage output – Any car-wide voltage ranges from 200V-1000V
Intelligent operation – Not only can be operated on Teison OCPP platform, but also compatible with various OCPP platform connections
Backstage monitoring – Real-time monitoring of the station status
Load balancing – More effective connection to the load system

Category:
Specification
ModelTS-EDC60AA

TS-EDC60AA/AC43

TS-EDC90AA

TS-EDC90AA/AC43

TS-EDC120AA

TS-EDC120AA/AC43

Electrical Properties
AC InputInput RatingAC400V(±15%) 3ph
AC Input Connection3P+N+PE
Rate Input Current3①100A3①150A30200A
Frequency50/60HZ
Power Factor20.99
Efficiency>95%
DC OutputOutput Voltage Range200V-1000V
Max.Output Current200A(system)300A(system)400A(system)
Max.Output PowerDC60kWDC90kWDC120kW
Voltage Accuracy<±0.5%
Current Accuracy<±1%
User Interface & Control
Display10.1″ touch screen
Screen MaterialLCD
Push ButtonsOperation buttons / Emergency buttons
User AuthenticationRFID,OCPP,QR code,Password,Application
Support languageEnglish (Other languages available upon request)
Communication
ExternalEthernet,WIFI,3G/4G
InternalCAN,RS485,RS232
Environmental
Operating Temperature-301 ~ +50°C
Humidity<95% relative humidity, non-condensing
Altitude<2000m(6000 feet)
Mechanical
Ingress protectionIP55
Enclosure ProtectionIK10
CoolingAir forced
Installation MethodFloor mounted
Protection
ProtectionOver current, Under voltage, Over voltage, Residual current, Surge protection, Short circuit, Over temperature, Ground fault
Regulation
CertificateCE and CB certificated by TUV Rheinland
StandardEN IEC-61851-1：2019； EN61851-23：2014； EN 61851-24:2014；

EN IEC 61851-21-2:2021



Specification
ModelTS-EDC150AA

TS-EDC150AA/AC43

TS-EDC180AA

TS-EDC180AA/AC43

TS-EDC200AA

TS-EDC200AA/AC43

TS-EDC240AA

TS-EDC240AA/AC43

Electrical Properties
AC InputInput RatingAC400V(±15%) 3ph
AC Input Connection3P+N+PE
Rate Input Current30250A30300A30350A30400A
Frequency50/60HZ
Power Factor>0.99
Efficiency>95%
DC OutputOutput Voltage Range200V-1000V
Max.Output Current500A(system)600A(system)666A(system)800A(system)
Max.Output PowerDC150kWDC180kWDC240kWDC240kW
Voltage Accuracy±0.5%
Current Accuracy±1%
User Interface & Control
Display10.1″ touch screen
Screen MaterialLCD
Push ButtonsOperation buttons / Emergency buttons
User AuthenticationRFID,OCPP,QR code,Password,Application
Support languageEnglish (Other languages available upon request)
Communication
ExternalEthernet,WIFI,3G/4G
InternalCAN,RS485,RS232
Environmental
Operating Temperature-30C ~ +50 C
Humidity<95% relative humidity, non-condensing
Altitude<2000m(6000 feet)
Mechanical
Ingress protectionIP55
Enclosure ProtectionIK10
CoolingAir forced
Installation MethodFloor mounted
Protection
ProtectionOver current, Under voltage, Over voltage, Residual current, Surge protection, Short circuit, Over temperature, Ground fault
Regulation
CertificateCE and CB certificated by TUV Rheinland
StandardEN IEC-61851-1：2019； EN61851-23：2014； EN 61851-24:2014；

EN IEC 61851-21-2:2021
