1. Introduction
With more Malaysians adopting electric vehicles, installing a home charger has become a necessity. This guide covers everything you need to know—from choosing the right charger and assessing your electrical system to ensuring safety and compliance.
2. Choose the Right Charger Type
- Portable (Mode 2) Charger: Usually included with the vehicle. It plugs into a standard wall socket but is slow (1.7 kW at 8 A) and intended for occasional use. ST and TNB guidelines caution against using regular 13-A outlets for continuous EV charging because they are not designed for 32 A loads.
- Wallbox (Mode 3) Charger: Fixed to the wall and connected directly to your distribution board. Common ratings include 7 kW (single phase) and 22 kW (three phase). Wall boxes are recommended for regular home charging. For example, the Teison-IGP Smart Mini Home Charger offers 7 kW or 22 kW models with smart load balancing, solar mode, and app control.
- DC Fast Charger: Requires 440 V DC supply and significant infrastructure upgrades. Not suitable for residential settings; typically used at commercial stations.
3. Assess Your Electrical Supply
Most Malaysian homes use a single-phase 240 V supply, which supports chargers up to 10 kW. Single-phase homes typically install 7 kW chargers. Three-phase (415 V) supply is needed for 11 kW or 22 kW chargers and is common in larger properties. If your existing supply cannot handle the charger load plus other household appliances, your installer may recommend a supply upgrade through TNB.
4. Hire an ST-Registered Contractor

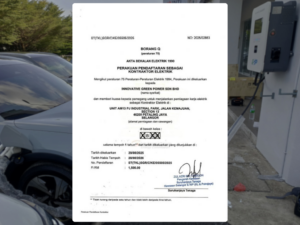

Before installation, engage a registered electrical contractor to perform a site inspection. The TNB customer guide explicitly instructs homeowners to engage contractors registered with the Energy Commission and licensed wiremen or chargemen. This ensures compliance with Malaysian law and reduces the risk of faulty installations.
5. Design a Dedicated Circuit

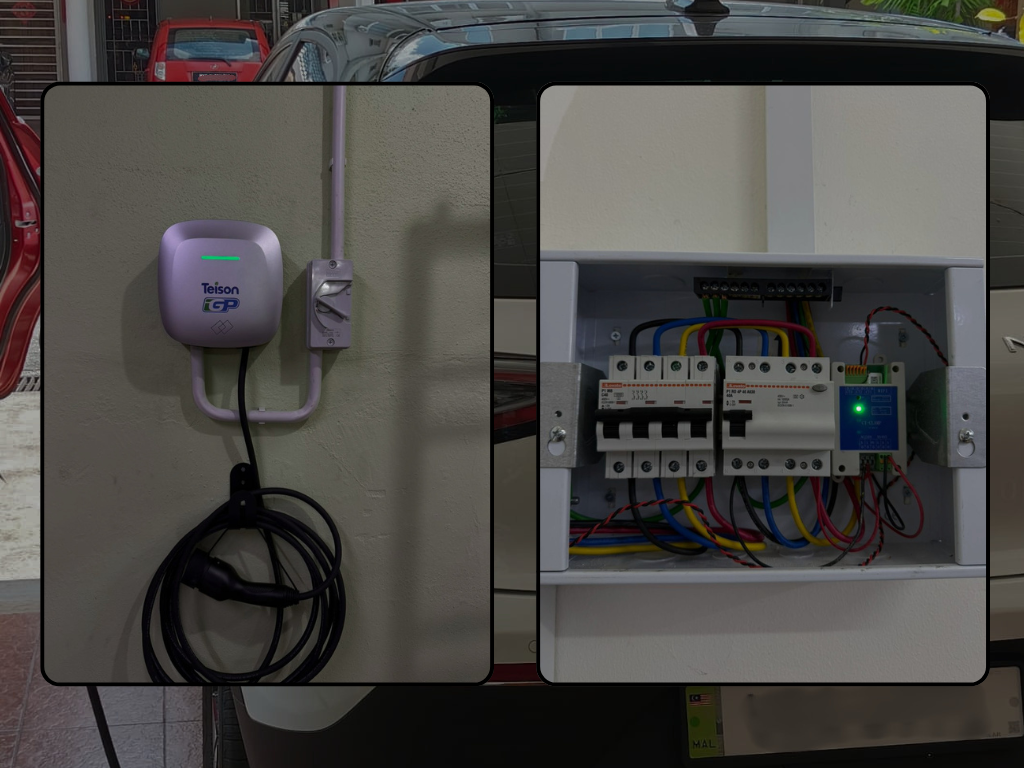

EV chargers require a dedicated final circuit with:
- Appropriate cable size (minimum 6 mm² for indoor runs; 10 mm² if exposed to sunlight).
- Residual current protection (30 mA RCCB or RCBO).
- Overcurrent protection (proper MCB rating) and no cable joints in the circuit.
- Correct earthing and surge protection to avoid lightning or fault damage.
- An isolation switch for safe maintenance.
Avoid connecting an EV charger to an existing 13-A socket or extension cord; they are not designed for continuous high loads.
6. Installation and Testing
After installation, the contractor should test the circuit and charger using appropriate instruments and issue Form G (Supervision and Completion Certificate) and Form H (Test Certificate). These documents prove that the installation complies with ST regulations and are vital for warranty and insurance claims.
7. Maintenance and Upgrades
Schedule periodic inspections, particularly if your home undergoes electrical upgrades or if you notice tripping issues. Also, evaluate your supply if you plan to upgrade to a three-phase charger or if you purchase an additional EV. IGP offers after-sales support, including annual maintenance and load balancing checks.
8. Why Choose IGP
Innovative Green Power handles the entire process: site inspection, load assessment, charger selection, dedicated circuit design and documentation. Our Smart Mini Home Charger includes home load balancing, which automatically adjusts charging output to prevent overloads. We also offer a Portable EV Charger Pro for flexible charging at 3.5 kW with adjustable current settings and a 2-year warranty ideal as a backup or for travel.
9. Conclusion
Installing a home EV charger in Malaysia requires careful planning, compliance with regulations and professional workmanship. Choose a registered electrical contractor, assess your supply capacity, install a dedicated circuit and ensure proper testing and documentation. Avoid DIY or low-quality installations; invest in the right equipment and professional service to protect your home and your EV. IGP is here to provide safe, compliant and smart charging solutions tailored to your needs.
